Description

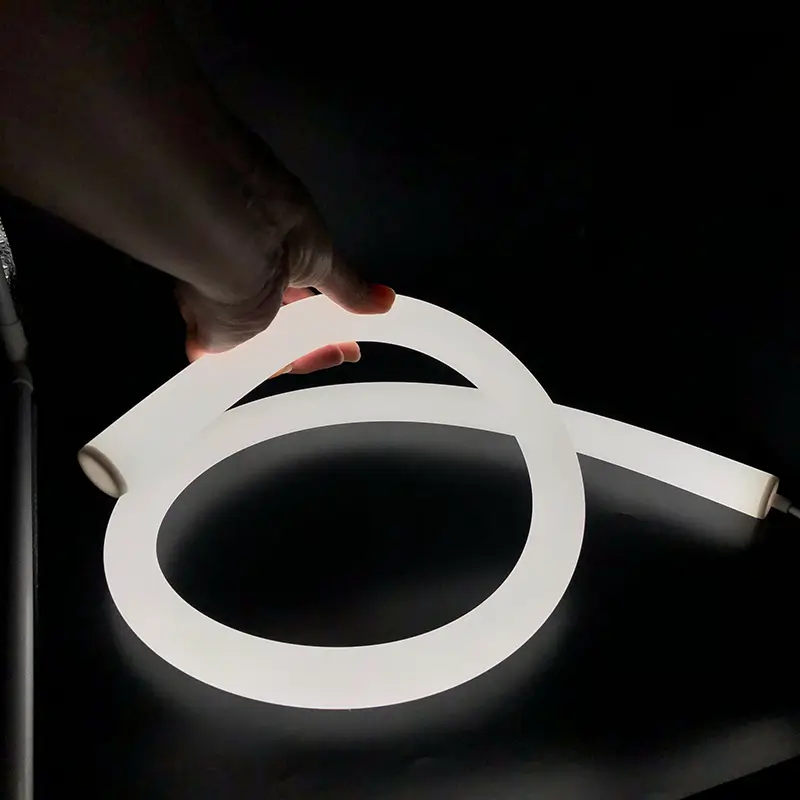

360° Round Neon
The 360° Round Neon flex features dot-free lighting, longer lifespan and High efficacy, high CRI, it is designed to provide consistent linear lighting for a wide variety of applications for cove lighting and indirect lighting in hotels, restaurants, shops, offices and homes.
Product features
- High efficacy
High lighting transmission rate, up to 90%,The high lumen output solution is suitable for decorative and illumination lighting purpose.
- Good thermal management
The silicone thermal conductivity is 0.27W/MK, which is much higher than PVC 0.14W/MK, it helps better thermal management on LED strip.
- High Ingress Protection
The IP67 and IP68 is coming true by adopting the superior design and manufacturing craft on the cable and cap.
- Weather resistance
Storage temp. : -50~150°C
Ambient temp. : -25 ~ 45°C
Ambient temp. : -25 ~ 45°C
Specification
|
Model No.
|
HP25D-SW-144
|
HP25D-TW-144 | HP25D-RGB-144 | |
|
Power
|
14.4W/m
|
14.4W/m
|
14.4W/m | |
|
CCT/Color
|
2200K~5700K
|
2200K+5700K | RGB | |
|
Lumen output
|
2200K 720 Lm/m CRI 90+ 2700K 864 Lm/m CRI 90+ 3000K 922 Lm/m CRI 90+ 4000K 1008 Lm/m CRI 90+ 5700K 1008 Lm/m CRI 90+ |
2200K 324 Lm/m
5700K 446 Lm/m 2000K
+ 720 Lm/m 5700K
|
RGB 418 Lm/m Red 86 Lm/m Green 307 Lm/m Blue 39 Lm/m |
|
|
MaxRun
|
5m | 5m | 5m | |
|
LEDs/m
|
336LEDs/m
|
384LEDs/m | 280LEDs/m | |
|
Cut Length
|
11.9mm
|
62.5mm | 50mm | |
| CRI | CRI90+~95+ | CRI90+~95+ | / | |
| Voltage | 24V DC | |||
| Dimmable |
Yes (PWM, DALI, 0/1-10V, Triac)
|
|||
| IP Rating | IP65 | |||
|
Ambient temp.
|
-35°C ~ 45°C
|
|||
|
Beam Angle
|
360°
|
|||
| Bend ratio | R>110mm | |||
|
Strip length/reel
|
0.5m ~ 50m
|
|||
|
Lifespan
|
50,000Hrs
|
|||
