Description

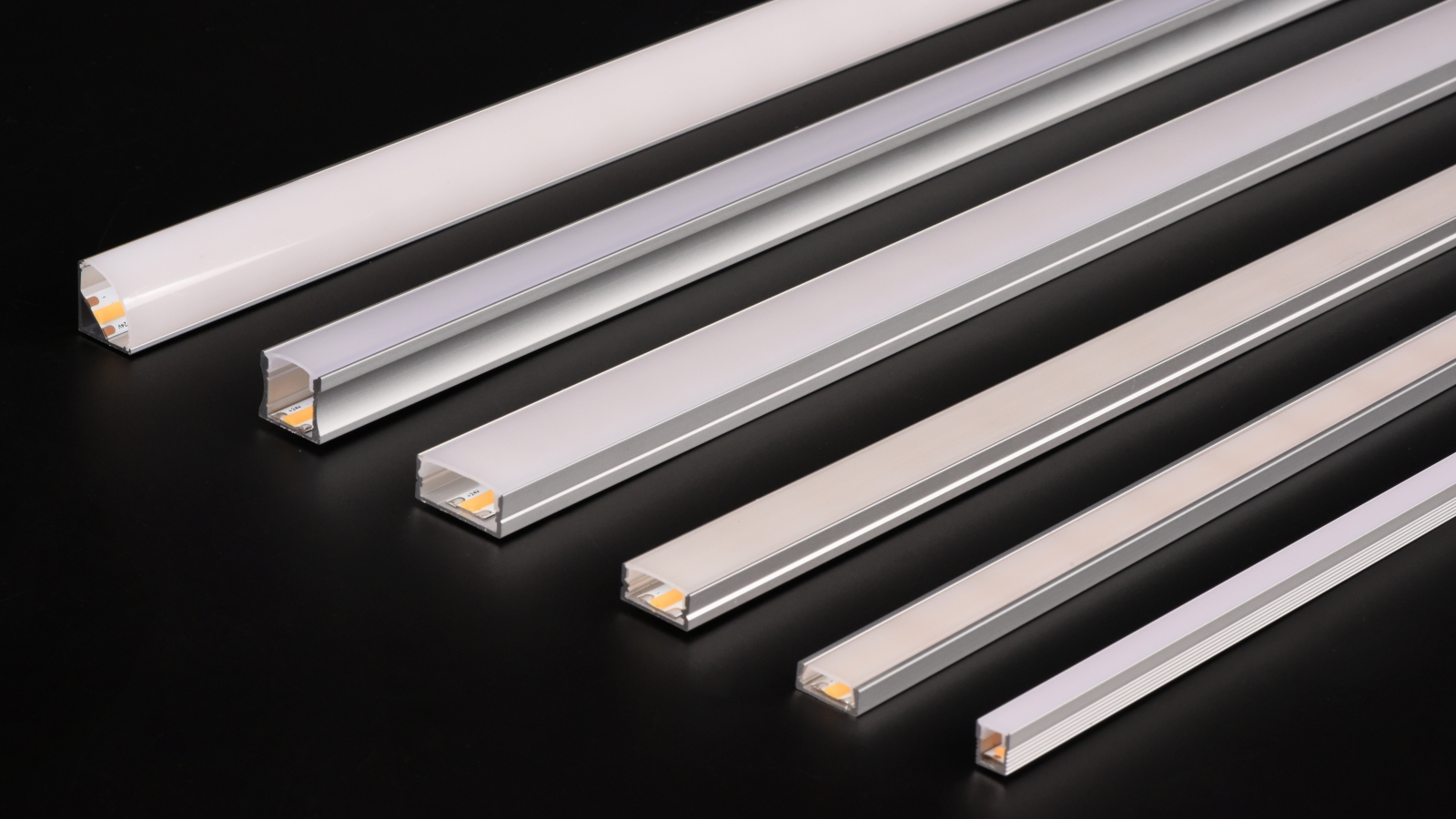

LED Linear Light
Combined with LED Alu. Profile, the LED linear light is a innovative way to create more elegant and reliable lighting. They are suitable for surface mounting, recessed mounting, or suspension installations.
These high quality profiles provide a unique ways to make use of linear low voltage lighting and are the designer’s choice for innovative commercial and residential applications.
Specification
 |
 |
 |
 |
 |
 |
|||||
|
Model No.
|
HP-AL-0809
|
HP-AL-1506
|
HP-AL-1616
|
HP-AL-1708
|
HP-AL-1715
|
HP-AL-2310
|
||||
|
Size
|
8*9mm
|
15*6mm
|
16*16mm
|
17*8mm
|
17*15mm
|
23*10mm
|
||||
|
Power
|
6W/m
|
8W/m | 14.4W/m | 14.4W/m | 14.4W/m | 14.4W/m | ||||
|
Lumen output
|
480 Lm/m
|
640Lm/m | 1120 Lm/m | 1120 Lm/m | 1120 Lm/m | 1120 Lm/m | ||||
|
Installation
|
Moungting clips
|
|||||||||
|
Diffuser
|
Opal/Frosted/Transparent
|
|||||||||
| CRI(White) |
Ra>90
|
|||||||||
| CCT/Color |
2400K, 2700K, 3000K, 4000K, 5500K, 6000K, 6500K, Red, Green, Blue
|
|||||||||
| Voltage |
12/24V DC
|
|||||||||
| Dimmable |
Yes
|
|||||||||
|
Customized length
|
Yes | |||||||||
| IP Rating |
IP20 (IP65, IP67, IP68 Optional)
|
|||||||||
|
Ambient temp.
|
-35°C ~ 50°C
|
|||||||||
|
Beam Angle
|
120°
|
|||||||||
|
Strip length/reel
|
0.5m ~ 30m
|
|||||||||
|
Lifespan
|
50,000Hrs
|
|||||||||
