Description

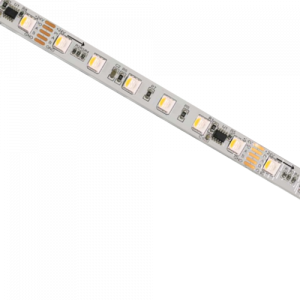

DigiFlex- Pixel LED Strip
Digital/Pixel/Programmable LED strip, the brightness and color of each pixel can be drived and regulated separately, they are suitable for SPI and DMX512 control system.
Decorating backlight and indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc.
Specification
|
Model No.
|
HP-RGBW5050RGBW60-24
|
||||
|
Power
|
19.2W/m
|
||||
|
PCB width
|
10mm
|
||||
|
Lumen output (RGBW, W=4000K)
|
Total 950 Lm/m CRI80+
605 Lm/m RGB
420 Lm/m CRI 80+
360 Lm/m CRI 90+
320 Lm/m CRI 95+
|
||||
|
MaxRun
|
5m | ||||
|
LEDs/m
|
5050 RGBW 60LEDs/m
|
||||
|
Cut Length
|
100mm (6LEDs)
|
||||
| CRI(White) |
White CRI 80+~95+
|
||||
| CCT/Color |
RGB R:620-625nm G:520-525nm B: 465-470nm / White 2400~6500K
|
||||
| Voltage | 24V DC | ||||
| Dimmable |
Yes (SPI/DMX control system)
|
||||
| IP Rating | IP20 | ||||
|
Ambient temp.
|
-35°C ~ 50°C
|
||||
|
Beam Angle
|
120°
|
||||
|
Strip length/reel
|
0.5m ~ 50m
|
||||
|
Lifespan
|
50,000Hrs
|
||||
