Description

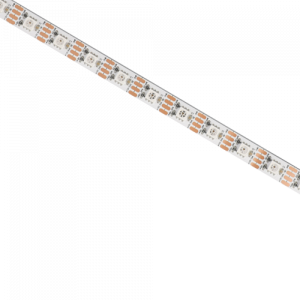

DigiFlex- Pixel LED Strip
Digital/Pixel/Programmable LED strip, the brightness and color of each pixel can be drived and regulated separately, they are suitable for SPI and DMX512 control system.
Decorating backlight and indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc.
Specification
Model No.
|
HP-RGB5050N60-12
|
||||
Power
|
14.4W/m
|
||||
PCB width
|
10mm
|
||||
Lumen output (RGB)
|
Total 576 Lm/m
130 Lm/m R
230 Lm/m G
72 Lm/m B
|
||||
MAXRUN
|
5m | ||||
LEDs/m
|
5050 RGB 60LEDs/m
|
||||
Cut Length
|
16.67mm(1LEDs)
|
||||
CRI(White) |
\
|
||||
CCT/Color |
RGB R:620-625nm G:520-525nm B: 465-470nm
|
||||
Voltage | 12V DC | ||||
Dimmable |
Yes (SPI/DMX control system)
|
||||
IP Rating | IP20 | ||||
Ambient temp.
|
-35°C ~ 50°C
|
||||
Beam Angle
|
120°
|
||||
Strip length/reel
|
0.5m ~ 50m
|
||||
Lifespan
|
50,000Hrs
|
