Description

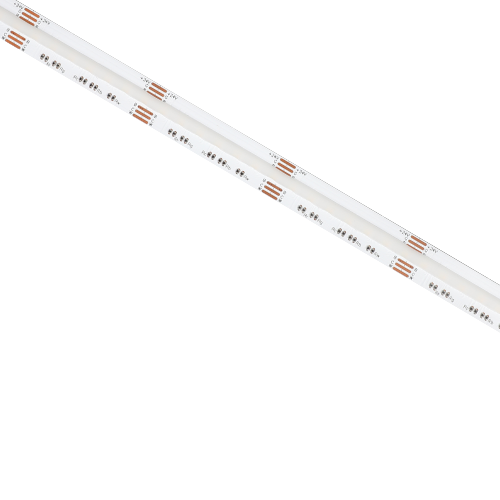

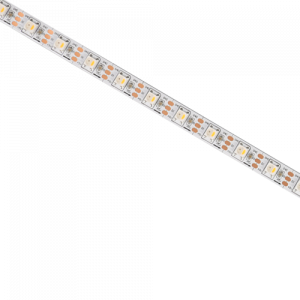

DigiFlex- Pixel LED Strip
Digital/Pixel/Programmable LED strip, the brightness and color of each pixel can be drived and regulated separately, they are suitable for SPI and DMX512 control system.
Decorating backlight and indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc.
Specification
|
Model No.
|
HP-RGBW50N60-5
|
||||
|
Power
|
15W/m
|
||||
|
PCB width
|
10mm
|
||||
|
Lumen output (RGBW, W=4000K)
|
Total 742 Lm/m CRI80+
442 Lm/m RGB
300 Lm/m CRI 80+
|
||||
|
MaxRun
|
5m | ||||
|
LEDs/m
|
5050 RGBW 60LEDs/m
|
||||
|
Cut Length
|
16.67mm(1LEDs)
|
||||
| CRI(White) |
White CRI 80+
|
||||
| CCT/Color |
RGB R:620-625nm G:520-525nm B: 465-470nm / White: 3000K, 4000K, 6000K
|
||||
| Voltage | 5V DC | ||||
| Dimmable |
Yes (SPI/DMX control system)
|
||||
| IP Rating | IP20 | ||||
|
Ambient temp.
|
-35°C ~ 50°C
|
||||
|
Beam Angle
|
120°
|
||||
|
Strip length/reel
|
0.5m ~ 50m
|
||||
|
Lifespan
|
50,000Hrs
|
||||
